Fluid Sealant HEPA Filter For Biological Clean Room

Quicky Detail

Media: Glass fiber

Frame: Aluminum

Gasket: Fluid Sealant

HEPA air filter efficiency: H10 - H14

HEPA filter size: 510x510x90

Pleat High : 96mm

Pleats Distance : 7-8PPI

Resistance:<200pa

Performace:

High purification rank, low resistance, easy install and excellent sealant effect

Applications area:

This air filters design for pharmaceutical and biotech industry applications.

Characteristics:

1: It is the finally filtration in clean room that use for filter the particles more than 0.3um

2: The media adopt the ultra-thin glass fiber , the hot-melt glue spacing each pleats in regular so that achieve high dust volume , all of the media area can be used in completely .

3: The anodized aluminum frame so that it is anticorrosion in long time. The sealant around the media so that the air filter without any air leaking ,both side with screen.

4 The air filters can be tested and easily replaced without disturbing the module housing or risking bypass leakage.

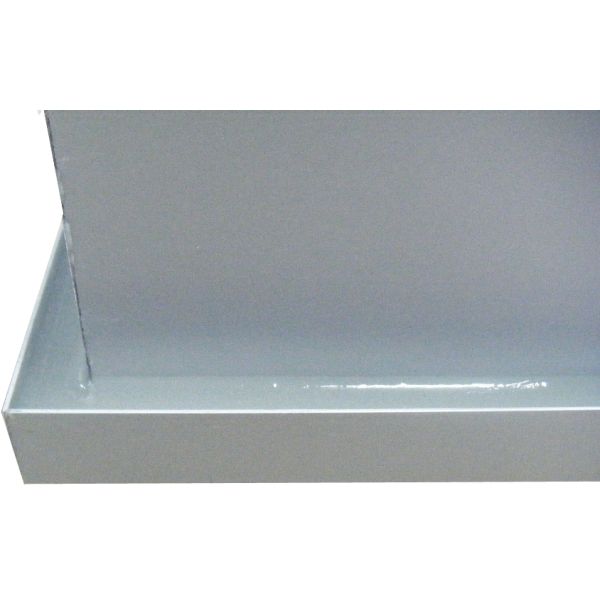

5: the downstream flange channel full with fluid gel so that increase the sealant. When the filter is installed, a knife edge on all four side of the housing penetrates the channel of gel to form an airtight seal. This gel is non-Newtonian liquids that with non-volatile and toxic, tasteless, endure acid and so on.

6: laser to scan the each air filter one by one.

7: the HEPA air filter efficiency range: H13, H14 99.97%-99.999%@0.3um (EN1822).

Dimension and parameter:

Customized size is available.

Material and operation conditions:

Why you choose K-LING Company ?

Professional sales:

• We value every inquiry that you sent to us, ensure quick competitive offer.

• We cooperate with customer to bid tenders. Provide all necessory docuement.

• We are a sales team, with all techinical support from engineer team

Punctual delivery time:

• Production / inspection report provide before shipment

• Shipping notice or insurance for you when your goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide one year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.

Payment Term:

T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
