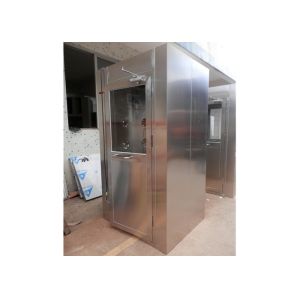

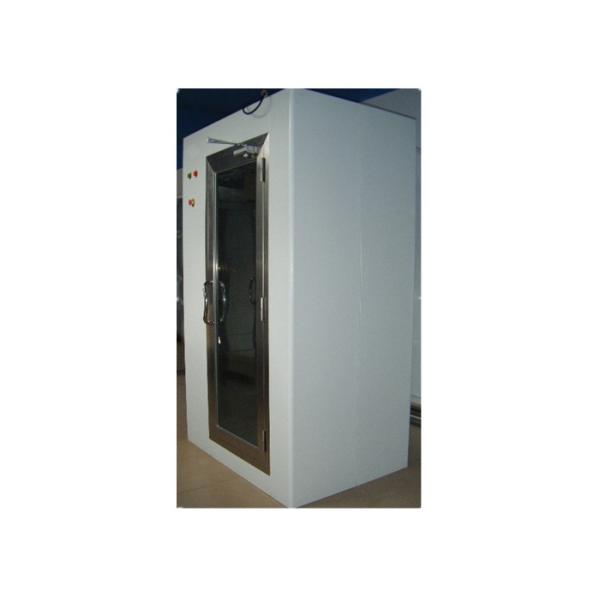

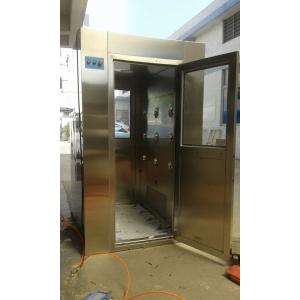

Industrial 3 Person Stainless Steel Air Shower For Bio -
Pharmaceutical Plant
Quickly Detail:
External Size: 1300x1000x2180mm
Internal size :1000X930X1910mm
Single person with three side blowing
HEPA filter efficiency: 99.999%@0.3um
Personal per cycle: 3 person
SUS nozzle: 16 pcs
Blower way : three side
Air speed :>25m/s
Power: 380V/50HZ
Introduce :
Stainless Steel Air Shower can be divided into two kinds for
different purpose,Air shower for operator and air shower for goods. It has various modes of showering from single-side,double-side or top. It
is also equipped with various kinds of doors in manual,in auto or shutter etc.There are five patents and Know-How in our products,such as air
shower, air revolving showeing very thin high-speed fan etc.They have brought a revolution to Air Shower.
Operating Features :
1: Microelectrics control system with LED display for the shower
time.
2: the air shower duration time adjustable from 0-99second.
3: Infrared ray inductor for inside personal shower automatic from
two side
4: Human being voice remind of user progress in chamber.
5: Emergency switch help you out of trouble, Comply with CE Test.
Stainless Steel Air Shower Parameter:
Model: KEL-AS1300-P1 KEL-AS1300/P2 KEL-AS1300/P3
External Size (W×D×H) mm 1300×1000×2100 1300×2000×2100 1300×3000×2100
Internal Size (W×D×H) mm: 800×900×1960 800×1900×1960 800×2900×1930
Suitable Number : 1-2person 2-4person 4-6person
Noise Level(dB): <62 <62 <62
Stainless Steel Nozzle: 16PCS 32PCS 48PCS
Wind Speed : ≥20-25m/s ≥20-25m/s ≥20-25m/s
Power supply : 380V/50HZ 3N
Pre-filter: 775×380×17 775×380×17 775×380×17
G4 G4 G4
HEPA Filter: 610×610×120 610×610×120 610×610×120
99.99% 0.3µm 99.99% 0.3µm 99.99% 0.3µm
Fluorescent Lamp: 9W×1 9W×2 9W×3
Total Power: 1.1KW 2.2KW 3.3KW
Optional accessor:
1. Manul swing door or automatic sliding door
2. HEPA air filter or ULPA air filter
3. The case is used of cold-rolled steel plate / all stainless
steel air shower / just stainless steel inside
4. Common fluorescent lamp / UV Sterilizer lamp
5. With voice announce
Factory test:
All of equipment is individually factory tested for safety and
performance in accordance with international Standards. Each unit
is shipped with a documentation outlining the tests undertaken and
the units individual results for each unit.
Factory test include:
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and
accessories.
All equipment is shipped with a comprehensive use’s manual complete
with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or
document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but
it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one
years.
Why you choose K-LING Company ?
Professional sales:
• We value every inquiry that you sent to us, ensure quick
competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory
docuement.
• We are a sales team, with all techinical support from engineer
team
Punctual delivery time:
• Production / inspection report provide before shipment
• Shipping notice or insurance for you when your goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide one year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
T/T in advance, 30% before place the order, 70% when you see copy
BL
Or 30% T/T in advance before place the order, 70% LC at sight.
